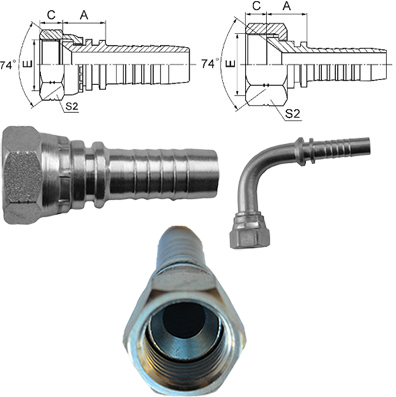

JIC - Joint Industries Council (американский стандарт).
Резьба: дюймовая от 7/16”-20 до 2 1/2”-12.
Диаметры рукавов: от 6 до 50 мм (1/4”-2”).
Виды фитинга: прямой 0°, угловой 45°, угловой 90°
| JIC гайка | JIC штуцер | ||||||||
| DN | дюйм | Резьба (Г), D | Ключ,S(Г) | DN | дюйм | Резьба (Ш), D | Ключ,S(Ш) | ||
| 5 | 3/16" | 7/16"-20 | 14 | 5 | 3/16" | 1/2"-20 | 14 | ||
| 1/2"-20 | 14 | 6 | 1/4" | 7/16"-20 | 12 | ||||
| 6 | 1/4" | 7/16"-20 | 14 | 1/2"-20 | 14 | ||||
| 1/2"-20 | 17 | 9/16"-18 | 17 | ||||||
| 9/16"-18 | 19 | 8 | 5/16" | 1/2"-20 | 14 | ||||
| 8 | 5/16" | 1/2"-20 | 17 | 9/16"-18 | 17 | ||||
| 9/16"-18 | 19 | 10 | 3/8" | 9/16"-18 | 17 | ||||
| 10 | 3/8" | 1/2"-20 | 17 | 3/4"-16 | 22 | ||||
| 9/16"-18 | 19 | 7/8"-14 | 24 | ||||||
| 3/4"-16 | 22 | 12 | 1/2" | 3/4"-16 | 22 | ||||
| 7/8"-14 | 27 | 7/8"-14 | 24 | ||||||
| 7/16"-20 | 14 | 1.1/16"-12 | 27 | ||||||
| 12 | 1/2" | 9/16"-18 | 19 | 16 | 5/8" | 7/8"-14 | 24 | ||
| 3/4"-16 | 22 | 1.1/16"-12 | 27 | ||||||
| 7/8"-14 | 27 | 20 | 3/4" | 7/8"-14 | 24 | ||||
| 1 1/16"-12 | 32 | 1.1/16"-12 | 27 | ||||||
| 16 | 5/8" | 3/4"-16 | 22 | 1.3/16"-12 | 32 | ||||
| 7/8"-14 | 27 | 1.5/16"-12 | 36 | ||||||
| 1 1/16"-12 | 32 | 25 | 1 | 1.5/16"-12 | 36 | ||||
| 20 | 3/4" | 7/8"-14 | 27 | 1.5/8"-12 | 46 | ||||
| 1 1/16"-12 | 32 | 32 | 1 1/4" | 1.5/8"-12 | 46 | ||||
| 1 3/16"-12 | 36 | 1.7/8"-12 | 50 | ||||||
| 1.5/16"-12 | 41 | 38 | 1 1/2" | 1.7/8"-12 | 50 | ||||
| 25 | 1 | 1.1/16"-12 | 32 | 50 | 2 | 2.1/2"-12 | 65 | ||
| 1.5/16"-12 | 41 | ||||||||
| 1.5/8"-12 | 50 | ||||||||
| 32 | 1 1/4" | 1.5/8"-12 | 50 | ||||||
| 1.7/8"-12 | 55 | ||||||||
| 38 | 1 1/2" | 1.7/8"-12 | 55 | ||||||
| 2.1/2"-12 | 75 | ||||||||
| 50 | 2 | 2.1/2"-12 | 75 | ||||||
